Showing all 12 results

Cutomised Process Equipment From LabTechnicheCutomised Process Equipment From LabTechniche

Customised Process Equipment

STORAGE, MIXING & TRANSPORT

Customised Process Equipment

LacTechniche can meet your needs precisely. In addition to our extensive range of standard process equipment we can supply more sophisticated process equipment, engineered to meet your exact requirements, including:

  • Jacketed vessels
  • Mixing vessels
  • Pumped vessels
  • Complete processing systems

Adapting one of our standard products often provides a cost-effective solution, but we can also design and build vessels and other equipment to your specification. Please let us know if you have a project you wish to discuss and we will arrange a discussion with one of our engineers.

Semi-Automatic, Mobile High Shear Mixer from LabTechnicheSemi-Automatic, Mobile High Shear Mixer from LabTechniche

High Shear Mixer

STORAGE, MIXING & TRANSPORT

High Shear Mixer

The LabTechniche High Shear Mixer is a semi-automatic mobile unit, ideal for creating emulsions from oil and water based mixes.

These mixers feature a mixing head mounted on a mobile stand with painted hydraulic cylinder (manually operated), and a control panel that is IP55 rated. All contact parts are manufactured from 316L grade stainless steel, with the remainder of the construction being 304 grade.

As standard this unit will operate at 2,900rpm.

Options:

  • Variable speed
  • 3 phase or single phase
  • 1.1kW or 2.2kW
  • Safety interlocks
  • Motor shroud
Stainless Steel Mixing Vessels From LabTechnicheStainless Steel Mixing Vessels From LabTechniche

Mixing Vessels

STORAGE, MIXING & TRANSPORT

Stainless Steel Mixing Vessels From LabTechniche

LabTechniche can supply a wide variety of stainless steel mixing vessels with mixers/agitators mounted on to standard LabTechniche vessels, customised LabTechniche vessels, or custom stainless steel vessels designed to meet your individual specification.

Options:

  • Flat, flat sloping, cone or dished vessel bottom
  • Mixing solution (high shear, propeller, agitator etc. of varying power and speed)
  • Additional ports
  • Additional manways
  • Jackets (heated, cooled or insulated)
  • Mobile frames
Stainless Steel Mobile Frames from LabTechniche Limited

Mobile Frames

STORAGE, MIXING & TRANSPORT

Stainless Steel Mobile Frames

LabTechniche stainless steel mobile frames are available in 304 grade stainless steel. They are ideal for moving our storage and mixing vessels smoothly and safely without lifting or carrying. Supplied with four castors, two with brakes, they are available with straight or angled locating flanges.

Mortars and Pestles

£0.00

STORAGE, MIXING & TRANSPORT

Mortars and Pestles

A range of mortars and pestles available in unglazed porcelain or glass.

LabTechniche mortars and pestles are available in unglazed porcelain or glass and are sold as sets. Ideal for use in laboratory, catering and pharmacy environments. Various sizes are available.

Stainless Steel Paddle Stirrer from LabTechnicheStainless Steel Paddle Stirrer from LabTechniche

Paddle Stirrer

£175.20 excl VAT

STORAGE, MIXING & TRANSPORT

Stainless Steel Paddle Stirrer

This paddle stirrer is formed in one piece and manufactured from 316 pharmaceutical grade stainless steel, ensuring the highest levels of hygiene. It it suitable for manual mixing of a variety of products in a production environment.

Material traceability and quality is what sets us apart from our competitors and ensures customers receive the highest quality goods every time they order.

Mobile Polypropylene Vessels - LabTechniche, Lab Equipment Specialists

Polypropylene Vessels

STORAGE, MIXING & TRANSPORT

Mobile Polypropylene Vessels from LabTechniche

LabTechniche can supply a range of mobile polypropylene vessels for products that cannot come into contact with stainless steel.

These vessels have welded seams and are supplied with drop on lids. An external stainless steel band can be added with two carrying handles to aid moving when empty. A mobile frame set on four castors (two braked) is an optional extra.

Propeller or high shear mixers can also be supplied, and the vessels are available in various sizes.

semi-automatic propeller mixer from LabTechniche

Propeller Mixer

STORAGE, MIXING & TRANSPORT

Semi-automatic Propeller Mixer

The LabTechniche Propeller Mixer is a semi-automatic mobile mixer, ideal for mixing mobile liquids and free dissolving powders.

The mixing head is mounted on a mobile stand with painted hydraulic cylinder (manually operated), and the control panel is IP55 rated. All contact parts manufactured from 316L grade stainless steel, with the remainder of the construction being 304 grade.

As standard this unit will operate at 1,400rpm.

Options:

  • Variable speed
  • 3 phase or single phase
  • 0.375kW or 0.75kW
  • Safety interlocks
  • Motor shroud
Professional Stainless Steel Drink Mixers from Lab TechnicheProfessional Stainless Steel Drink Mixers from Lab Techniche

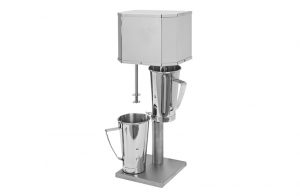

Stainless Steel Drink Mixers

£425.00£899.93

STORAGE, MIXING & TRANSPORT

Stainless Steel Drink Mixers

LabTechniche drink mixers are ideal for any application where high-speed mixing is required. They are used in coffee shops, cafes, diners and restaurants throughout the UK, and are often used as ‘showpiece’ milkshake mixers.

Our stainless steel drink mixers are robust and reliable, and external surfaces are generally stainless steel to help you keep them clean and looking good.

The mixers are available as single or twin units, and the single unit comes in two versions: one for standing on a counter and the other for fixing to a wall. All the mixers are simple to operate: a powerful motor is automatically switched on when the beaker is in position and stops when the beaker is removed. They are available in 240 volt and 12 volt DC versions (240 volt as standard, 12 volt to special order): each 240 volt version is fitted with a safety plug and simply plugs in to a suitable socket and is ready to go.

We also offer servicing and a comprehensive range of spares for our mixers – please ask for more information. Details of our “Keep You Mixing!” service, which helps you to maintain revenue if a mixer develops a fault, are also available on request.

Ultra-sonic Mixing/homoginiser

Ultrasonic Homogenizer (1200W)

ULTRASONIC MIXERS

Ultrasonic Homogenizer (1200W)

Ultrasonic homogenizer is a special and unique product which is applicable for laboratory and small scale manufacturing applications

The device is suitable for developing  and performing scientific research.

It has 20 kHz working frequency with adjustable power range between 0-1200 W.

It operates in pulse mode and total duration of reaction is also adjustable. In addition, it is equipped with thermometer which is for regulating the temperature of the reaction chamber.

How the Ultrasonic Homogenizer  Works

The ultrasonic power supply (generator) converts 50/60 Hz voltage to high frequency electrical energy. This alternating voltage is applied to disc-shaped ceramic piezoelectric crystals within the converter, causing them to expand and contract with each change of polarity.

These longitudinal vibrations are amplified by the probe (horn) and transmitted into the liquid as ultrasonic waves consisting of alternate expansions and compressions. The pressure fluctuations pull the liquid molecules apart creating micro-bubbles (cavities), which expand during the negative pressure excursions, and implode violently during the positive excursions.

As the bubbles collapse, millions of shock waves eddies and extremes in pressures and temperatures are generated at the implosion sites. Although this phenomenon, known as cavitation, lasts but a few microseconds, and the amount of energy released by each individual bubble is minimal, the cumulative amount of energy generated is extremely high.

The high shear energy delivered is at maximum near the tip of the probe, and decreases as the distance away from the tip increases.

Compared to mechanical homogenizers, ultrasonic processing is fast and highly reproducible.

Probes are practically self cleaning, and by virtue of their design, account for negligible sample losses. When used with environmentally safe aqueous cleaning solutions, the Homogenizer becomes a powerful cleaning tool, capable of removing the most tenacious contaminants from normally inaccessible locations. Unlike ultrasonic baths, which dissipate the vibrational energy over a large area, the Homogenizer probe focuses the energy to create a concentrated, high intensity cleaning zone.

Ultra-sonic probe homogenizer

Ultrasonic Homogenizer (200W)

ULTRASONIC MIXERS

Ultrasonic Homogenizer (200W)

Ultrasonic homogenizer is a special and unique product which is applicable for laboratory and small scale manufacturing applications

The device is suitable for developing  and performing scientific research.

It has 20 kHz working frequency with adjustable power range between 0-200 W.

It operates in pulse mode and total duration of reaction is also adjustable. In addition, it is equipped with thermometer which is for regulating the temperature of the reaction chamber.

How the Ultrasonic Homogenizer  Works

The ultrasonic power supply (generator) converts 50/60 Hz voltage to high frequency electrical energy. This alternating voltage is applied to disc-shaped ceramic piezoelectric crystals within the converter, causing them to expand and contract with each change of polarity.

These longitudinal vibrations are amplified by the probe (horn) and transmitted into the liquid as ultrasonic waves consisting of alternate expansions and compressions. The pressure fluctuations pull the liquid molecules apart creating micro-bubbles (cavities), which expand during the negative pressure excursions, and implode violently during the positive excursions.

As the bubbles collapse, millions of shock waves eddies and extremes in pressures and temperatures are generated at the implosion sites. Although this phenomenon, known as cavitation, lasts but a few microseconds, and the amount of energy released by each individual bubble is minimal, the cumulative amount of energy generated is extremely high.

The high shear energy delivered is at maximum near the tip of the probe, and decreases as the distance away from the tip increases.

Compared to mechanical homogenizers, ultrasonic processing is fast and highly reproducible.

Probes are practically self cleaning, and by virtue of their design, account for negligible sample losses. When used with environmentally safe aqueous cleaning solutions, the Homogenizer becomes a powerful cleaning tool, capable of removing the most tenacious contaminants from normally inaccessible locations. Unlike ultrasonic baths, which dissipate the vibrational energy over a large area, the Homogenizer probe focuses the energy to create a concentrated, high intensity cleaning zone.

Stainless Steel Water Jacketed Vessels from LabTechNicheStainless Steel Water Jacketed Vessels from LabTechNiche

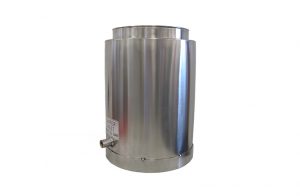

Water Jacketed Vessels

£1,038.20£1,768.00

STORAGE, MIXING & TRANSPORT

Stainless Steel Water Jacketed Vessels

The LabTechniche range of stainless steel water jacketed vessels are available in 316 stainless steel with a 304 stainless steel 1/4 bar low pressure water jacket.

They are suitable for use with a non pressurised water supply with hot or cold water for heating or cooling. These vessels are supplied with a 1/4″ BSP water inlet at the bottom of the jacket and a 1/2″ BSP outlet at the top. They have crevice and pit free interiors and are polished throughout.

Material traceability and quality is what sets us apart from our competitors and ensures customers receive the highest quality goods every time they order.
