Peristaltic Pump

£0.00

Peristaltic Pumps

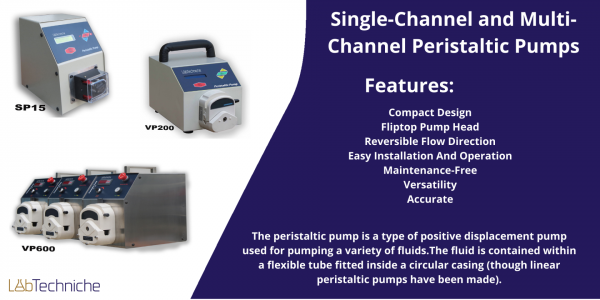

Single-Channel and Multi-Channel Peristaltic Pumps

The peristaltic pump is a type of positive displacement pump used for pumping a variety of fluids.The fluid is contained within a flexible tube fitted inside a circular casing (though linear peristaltic pumps have been made).

Pump action is created by compressing the tube between rotating rollers and a track. Between each roller pass, the tube recovers to create a vacuum and draws in fluid. Complete tube closure provides the pump with its action, preventing backflow and eliminating the need for check-valves when the pump is not running.

Peristaltic pumps are very helpful when dispensing culture media, buffers or other solutions. As nothing but the tube touches the fluid, the risk of contamination in the pump is eliminated. These pumps have no valves, selas or glands and have a number of advantages over other pump types such as superior flow rate stability and metering accuracy, extensive chemical compatibility and inherently hygeinic. The LabTechniche peristaltic pumps are perfect in the laboratory and manufacturing plant for continuous hard working.

  • Compact Design
  • Fliptop Pump Head
  • Reversible Flow Direction
  • Easy Installation And Operation
  • Maintenance-Free
  • Versatility
  • Accurate
Clear

Applications

Research & Development
Ideal for research and development regarding to very easy to load and extremely versatile for use in the laboratory or process area.

Industrial
For everyday transferring and metering applications in the laboratory or plant.

Food & Beverage
Handling wide range of fluids from hot water and vitamins to thick juice. All the pump heads are designed for easy tubing exchange and a wide selection of the drives have “Wash-Down” capabilities. Most importantly for food applications.

Biopharmaceutical
Designed to be non-contaminating and non-invasive for using in the pharmaceutical industry. The LabTech peristaltic pumps have been designed to meet high precision liquid delivery requirements in upstream and downstream bioprocess applications such as dosing, feeding, mixing, transferring or harvesting.

Features

Compact Design
This pump fits everywhere and can be moved easily.

Fliptop Pump Head
Allows for an easy and quick tubing exchange.

Versatility
Compatible with tubing from 1 to 8 mm ID. Use a single-channel pump head and upgrade your model to multi-channel operation in just minutes with a different pump head.

Contamination Free Pumping
Ideal for shear-sensitive fluids, viscous sludge or slurries and aggressive acids and caustics.

Really Maintenance-Free
No expensive seals, valves, diaphragms or rotors to leak, clog or corrode.

Designed For Continuous Duty
24 Hours / 7 Days

Product Data

Pump Series Sina SP15 Sina VP200 Sina VP600 Sina DG8
Speed Range (rpm) 0-200 0-400 0-500 0-200
Flow Range (ml/min) 0.1 – 100 0.5 – 1500 100 – 10,000 0.1 – 100
Tubing Range (mm) Wall 1.6, ID 0.8 – 4.8 Wall 1.6, ID 0.8 – 7.9 Wall 3.3, ID 9.6 & 12.7 Wall 0.8~1, ID < 3.17
Pump Head
Housing Material Polyamide Polyphenylene Sulfide Polysulfone Polyoxymethylene
Roller Number 2 3 3 6
Channel Number 1 1/2 1/2 8
Roller Material ABS Plastic Stainless Steel Stainless Steel Stainless Steel
Dimensions (mm) WxDxH 180x270x227 180x355x200 260x432x380 180x390x200
Weight (Kg) 3 6 13 3
