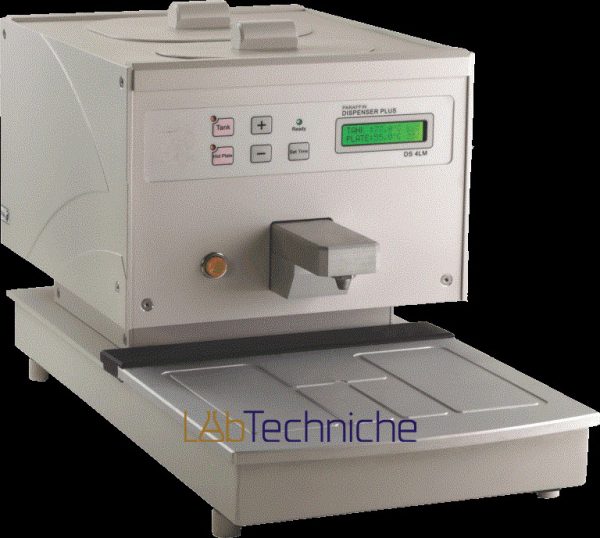

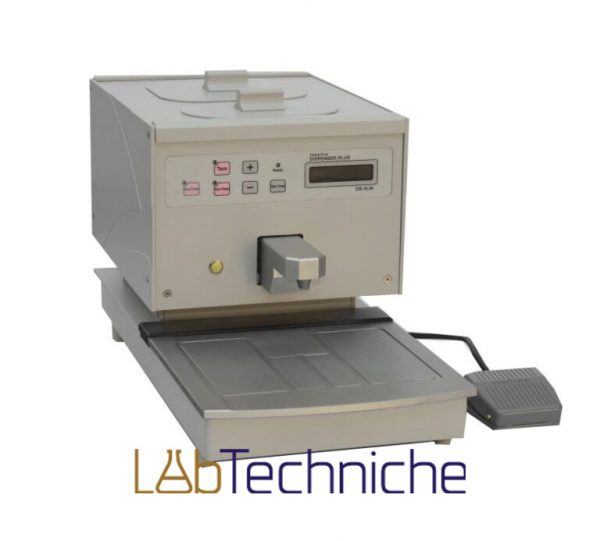

Paraffin Dispenser Model DS4LM+

2 tanks, a large tank for melting paraffin and a small tank for preheating plastic and metal molds.

Add to Wishlist
Add to Wishlist
Category:

Description

It is very important to control the flow and the temperature of the paraffin while embedding tissue samples. For this reason, it is recommended to use The Labtechniche paraffin dispenser while embedding. So you will not also have a good quality tissue sample block but also the control system of it will avoid paraffin waste.
It is also recommended to preheat the plastic and metal molding staff before starting embedding. The 1.5 Lt. preheating tank is installed on this device to make preheating easy for you.
In addition to the 1.5 Lt. preheating tank, the device has a 3-liter capacity tank for melting paraffin and a hot surface in Paraffin Dispenser.
The temperature of the paraffin melting tank varies between 30°c to 80°c, the preheating tank between 30°c to 80°c and the hot plate temperature varies between 30°c to 80°c.

Introducing Vac Techniche for all your vacuum technology, and thin-film material deposition systems, please visit our sister site Vac Techniche.

SPECIFICATIONS

DIMENSIONS (WXDXH) 300x520x290 mm
WEIGHT 23.5 Kg
VOLTAGE 220 V AC 50Hz
TANKS MATERIAL Stainless Steel
PARAFFIN TANK CAPACITY 2.3 Lit
PARAFFIN TANK TEMPERATURE RANGE 30°c to 80°c
PRE HEATING TANK CAPACITY 0.6 Lit
PRE HEATING TANK TEMPERATURE RANGE 30°c to 80°c
HOT PLATE DIMENSION 253x230mm
HOT PLATE COVER Erosion resistant cover
HOT PLATE TEMPERATURE RANGE 30°c to 80°c
TEMPERATURE ACCURACY 0.5°c
PARAFFIN FLOW CONTROL By the key on the front panel and foot switch
PARAFFIN FLOW CONTROL TIMER Timer limited to 300 seconds
DELAY TIMER FOR Delay timer adjustable for 10 days
VALVE LIGHT Yes
OVERHEATING PROTECTION SYSTEM Yes
DISPLAY TYPE LCD
CONTROL SYSTEM Microprocessor
GUARANTEE 12 months
AFTER SALES SERVICES 10 Years
CERTIFICATES ISO9001 and ISO13485 IMED Certificates
