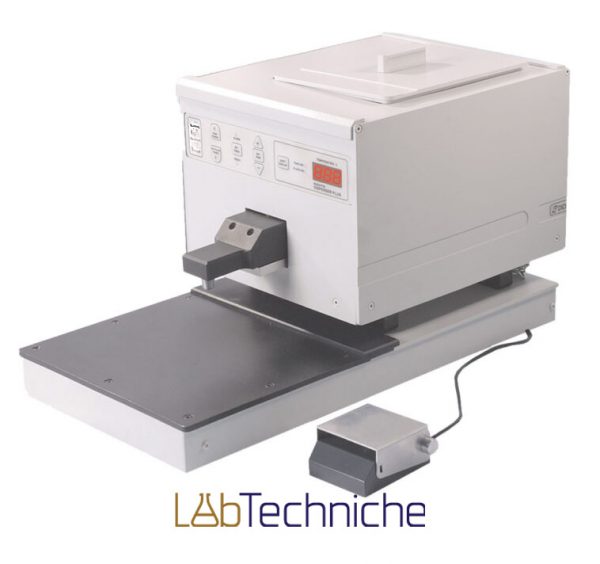

Paraffin Dispenser Model DS4LM

Paraffin melting tank material: stainless steel
Paraffin melting tank volume: 2/3 liters

Add to Wishlist
Add to Wishlist
Category:

Description

It is very important to control the flow of the paraffin while embedding the tissue samples. For this reason it is recommended to use The Labtechniche paraffin dispenser while embedding. So you will not also have a good quality tissue sample block but also the control system of it will avoid paraffin waste.
The device has a 3-liter capacity tank for melting paraffin and a hot surface.
The temperature of the paraffin melting tank varies between 30°c to 80°c and the hot plate temperature varies between 30°c to .80°c

Introducing Vac Techniche for all your vacuum technology, and thin-film material deposition systems, please visit our sister site Vac Techniche.

SPECIFICATIONS

DIMENSIONS (WXDXH) 300x520x290 mm
WEIGHT 23.5 Kg
VOLTAGE 220 V AC 50Hz
PARAFFIN TANK MATERIAL Stainless Steel
PARAFFIN TANK CAPACITY 2.3 lit
PARAFFIN TANK TEMPERATURE RANGE 30°c to 80°c
HOT PLATE DIMENSION 253x230mm
HOT PLATE COVER Erosion resistant cover
HOT PLATE TEMPERATURE RANGE 30°c to 80°c
TEMPERATURE ACCURACY 0.5°c
PARAFFIN FLOW CONTROL By the key on the front panel and foot switch
PARAFFIN FLOW CONTROL TIMER Timer limited to 300 seconds
DELAY TIMER FOR Delay timer adjustable for 10 days
VALVE LIGHT Yes
OVERHEATING PROTECTION SYSTEM Yes
DISPLAY TYPE LCD
CONTROL SYSTEM Microprocessor
GUARANTEE 12 months
AFTER SALES SERVICES 10 Years
CERTIFICATES ISO9001 and ISO13485 IMED Certificates
