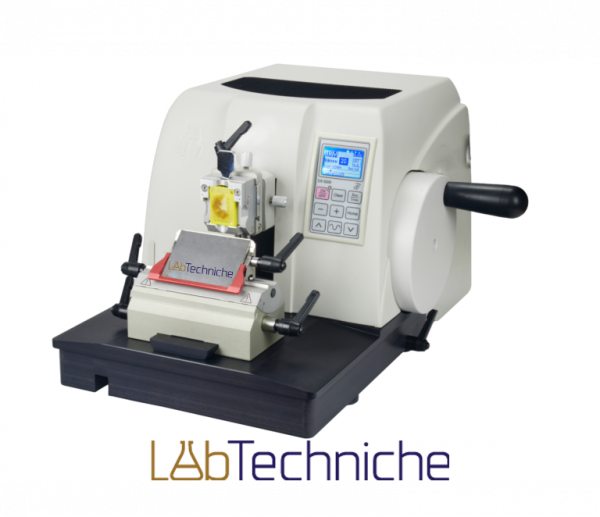

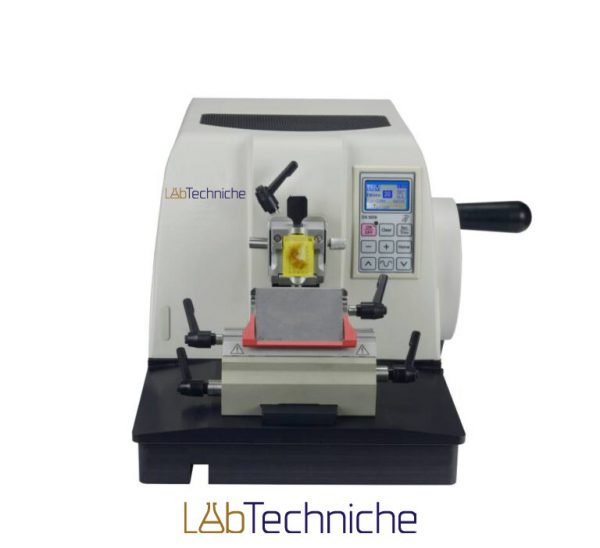

Semi-Automatic Microtome Model DS9209

Semi-automatic operating system

Add to Wishlist
Add to Wishlist

Description

The combination of the mechanical sectioning with the strength of motorized system yields the best results in The Labtechniche Semi-Automatic Microtome Model DS9209
This device holds only one handwheel for sectioning.
There are two Internal and External control panels which communicate in a real time manner with each other by which the operator can set the section thickness and retraction and also can get the tissue block holder close to the blade edge or get farther it.
Microtome DS9209 also is equipped with an internal memory to hold the specific positions of the tissue block to increase the speed of operation. The device also has a foot switch for toggling between Sectioning and Trimming modes for ease of operation.
It is possible to section the tissue samples blocked by conventional L shaped or plastic tissue cassettes by the related block clamps.
Retraction facility of the Microtome DS9209 makes the operator get the best of the serial sections. This facility may be set or even turned off by the operator.
The coarse feed is shown on the LCD Panel of the device.
Auto-Trimming facility makes the operator get thick sections easily and quickly.
The levered disposable blade holder helps the operator easily change the blade. Also, it makes it possible for the operator to use all sections of the blade systematically and lessens the usage of the blade. The finger protection is designed in a high and secure level to reduce the damages of the blade.
All parts of the device are produced in Lab Techniche Co. factories.

Introducing Vac Techniche for all your vacuum technology, thin-film material deposition systems, please visit our sister site Vac Techniche.

SPECIFICATIONS

DIMENSION (HANDWHEEL EXCLUDED) (WXDXH) 300x510x300 mm
WEIGHT 34 Kg
OPERATIONAL SYSTEM Semi-Automatic
SECTIONING VALUES 0.5 to 60 Microns
TRIMMING VALUES 1 to 600 Microns
RETRACTION FACILITY Adjusting Range: 1 to 600 Microns (Can be turned off by the operator)
FAST FORWARD FACILITY Yes
STEP FUNCTION Yes
ALOAD FUNCTION Yes
HOME FUNCTION Yes
CONTROL PANELS 2 Panels; one installed on device and the other as an external panel
FOOT SWITCH Yes
TISSUE BLOCK HOLDER TYPE Holder for Tissue Cassette Embedded Tissues Holder for L shaped molds Embedded Tissues (Based on Customer Order)
BLADE HOLDER TYPE Knife Holder or Disposable Blade Holder (Based on Customer Order)
HANDWHEEL SECURITY LOCK Yes
HANDWHEEL SAFETY LOCK Yes
CONTROL SYSTEM Microprocessor
GUARANTEE 12 months
AFTER SALES SERVICES 10 Years
CERTIFICATES ISO9001 and ISO13485 IMED Certificates
