Environmental simulation/climatic chambers

Environmental Testing Chambers

£0.00

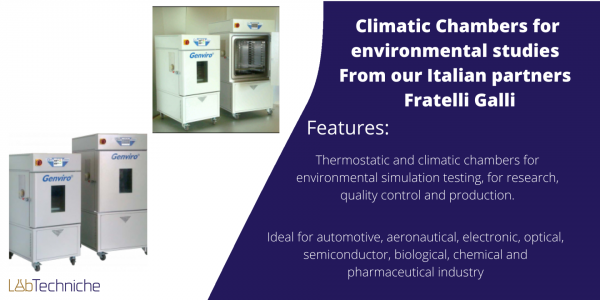

Climatic Chambers for environmental studies

From our Italian partners Fratelli Galli.

Thermostatic and climatic chambers for environmental simulation testing, for research, quality control and production.

Ideal for automotive, aeronautical, electronic, optical, semiconductor, biological, chemical and pharmaceutical industry.

With the advancement of Graphene and 2D materials developing new sensors and devices for industrial and defence usage, the Galli climate chamber is the ideal way to ensure the protective encapsulation of the device meets the harsh environmental conditions it is designed to withstand.

Add to Wishlist
Add to Wishlist
Add to quote
Categories: , , , SKU: N/A Tags:

Genviro-030 30 Litre



Specification GENVIRO-030
Volume L 30
Internal Dimensions L x D x H 330 x 280 x 330 mm
Part Number GENVIRO-030-T
Chamber Temperature range -40 +180°C
Part Number GENVIRO-030LT
Chamber Temperature range -70 +180°C
Chamber Climate GENVIRO-030-C
Chamber Temperature range -40 +180°C
Chamber Humidity 10% … 98%
Chamber Climate GENVIRO-030LC
Chamber Temperature range -70 +180°C
Chamber Humidity 10% … 98%
Temperature accuracy K +- 0,1 …+- 0,3
Temperature Uniformity K +- 0,5 …+- 1,5
% Humidity accuracy +- 1 …+- 3
Temperature Gradient K/min +- 3
Internal Dissipation W 100
External Dimensions L x D x H 530 x 790 x 1210 mm
Net weight Kg 150
Noise dB(A) 57
Power Kw 1,4 … 1,9
Mains Power 230V 1~ 50Hz
Boxed Unit size L x D x H 700 x 900 x 1500 mm
Total Weight Kg 175

Genviro-060 60 Litre

Specification GENVIRO-060
Volume L 60
Internal Dimensions L x D x H 410x360x410
Part Number GENVIRO-060-T
Chamber Temperature range -40 +180°C
Part Number GENVIRO-060LT
Chamber Temperature range -70 +180°C
Chamber Climate GENVIRO-060-C
Chamber Temperature range -40 +180°C
Chamber Humidity 10% … 98%
Chamber Climate GENVIRO-060LC
Chamber Temperature range -70 +180°C
Chamber Humidity 10% … 98%
Temperature accuracy K +- 0,1 …+- 0,3
Temperature Uniformity K +- 0,5 …+- 1,5
% Humidity accuracy +- 1 …+- 3
Temperature Gradient K/min +- 3
Internal Dissipation W 200
External Dimensions L x D x H 610x860x1390
Net weight Kg 210
Noise dB(A) 60
Power Kw 2 … 2,4
Mains Power 230V 1~ 50Hz
Boxed Unit size L x D x H 750x1000x1650
Total Weight Kg 235

Genviro-120 120 Litre

Specification GENVIRO-120
Volume L 120
Internal Dimensions L x D x H 550 x 400 x 550 mm
Part Number GENVIRO-120-T
Chamber Temperature range -40 +180°C
Part Number GENVIRO-120LT
Chamber Temperature range -70 +180°C
Chamber Climate GENVIRO-120-C
Chamber Temperature range -40 +180°C
Chamber Humidity 10% … 98%
Chamber Climate GENVIRO-120LC
Chamber Temperature range -70 +180°C
Chamber Humidity 10% … 98%
Temperature accuracy K +- 0,1 …+- 0,3
Temperature Uniformity K +- 0,5 …+- 1,5
% Humidity accuracy +- 1 …+- 3
Temperature Gradient K/min +- 3
Internal Dissipation W 300
External Dimensions L x D x H 750 x 900 x 1530 mm
Net weight Kg 260
Noise dB(A) 60
Power Kw 3,3 … 3,7
Mains Power 400V 3+N ~ 50Hz
Boxed Unit size L x D x H 900 x 1100 x 1800 mm
Total Weight Kg 285

Genviro-245 245 Litre

Specification GENVIRO-245
Volume L 245
Internal Dimensions L x D x H 700 x 500 x 700 mm
Part Number GENVIRO-245-T
Chamber Temperature range -40 +180°C
Part Number GENVIRO-245LT
Chamber Temperature range -70 +180°C
Chamber Climate GENVIRO-245-C
Chamber Temperature range -40 +180°C
Chamber Humidity 10% … 98%
Chamber Climate GENVIRO-245LC
Chamber Temperature range -70 +180°C
Chamber Humidity 10% … 98%
Temperature accuracy K +- 0,1 …+- 0,3
Temperature Uniformity K +- 0,5 …+- 1,5
% Humidity accuracy +- 1 …+- 3
Temperature Gradient K/min +- 3
Internal Dissipation W 400
External Dimensions L x D x H 900 x 1070 x 1780 mm
Net weight Kg 300
Noise dB(A) 60
Power Kw 5,5 … 6,1
Mains Power 400V 3+N ~ 50Hz
Boxed Unit size L x D x H 1300 x 1200 x 2000 mm
Total Weight Kg 330
