Histology Mictrotomes

£0.00

Microtome manual and fully automatic accurate and repeatable from Lab Techniche.

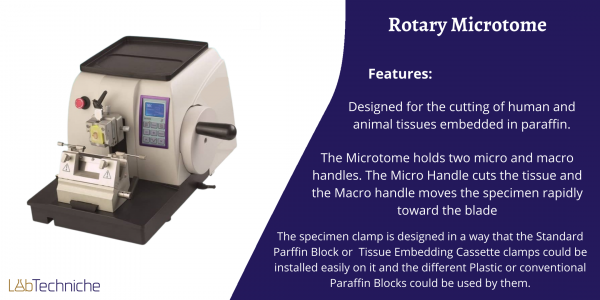

The Rotary Microtome instrument has been designed for the cutting of human and animal tissues embedded in paraffin.

The thickness of the sections can be adjusted according to the tissue type easily by the laboratory technician.

Increased instrument life time and efficiency has been achieved by using special ball bearings for linear and rotating mechanisms.

The Microtome holds two micro and macro handles. The Micro Handle cuts the tissue and the Macro handle moves the specimen rapidly toward the blade.

The section Thickness could be set via the front panel and the volume key from 1 to 60 microns by the operator.

Auto Trim is a facility of the device which could be used via the lever in two modes. The first mode of the system is 10 microns and the second one is 30 microns. This facility makes the operator be able to reach the tissue surface without touching the micron setting volume. For serial and consecutive sections, the Retraction facility is considered on this device.

The specimen clamp is designed in a way that the Standard Parffin Block or Tissue Embedding Cassette clamps could be installed easily on it and the different Plastic or conventional Paraffin Blocks could be used by them.

The Blade holder consists of two parts and the whole collection could be set according to the blade type from 0 to 10 degrees angle to the specimen.

This part is designed in a way that different types of the knives or the disposable blade holders could be easily .

Models available include our-Fully Automatic Microtome LT9502 it is programmable device and the operator can program it for sectioning different tissue blocks separately. There are also pre-programmed sectioning protocols defined on the device for biopsy and surgical tissue samples.

Add to Wishlist
Add to Wishlist
Add to quote
Categories: , SKU: N/A Tags:

Fully Automated Microtome LT9502

  • Fully-Automatic Intelligent Microtome Model LT9502 is a fully motorized device by which any setting is done digitally. The Sectioning process is also performed digitally with the least operation on behalf of the operator.The Super Light Handwheel of the device which is equipped with a safe lock is one of its many highlighted features.
    There are two Internal and External control panels which communicate in a real time manner with each other by which the operator can set the section thickness, retraction, sectioning speed, get the tissue block holder close or farther the blade edge and also perform sectioning process.
    Beside the easy access volumes placed on the device to control its settings the device also has Two foot switches for toggling between Sectioning and Trimming modes for ease of operation and for start/stop the sectioning process.
    Retraction facility of the Microtome LT9502 makes the operator get the best of the serial sections. This facility may be set or even turned off by the operator.There is the facility of sectioning different sized tissue blocks in different sectioning windows to improve sectioning performance.

    The cutting modes are the final point in ease of use in the Fully-Automatic Microtome LT9502.

    Adjustable Trimming facility makes the operator get thick sections easily and quickly.
    The intelligent sectioning system is designed to make this microtome be the fastest fully-automatic one in the world which acts using just one key in less than 3 seconds.
    The most important feature of the device is that there is no need for professional operators for sectioning.

  • Saving time and operator and consequently saving the costs are the top features of the device.
  • Different protection protocols for protecting operator, tissue block and also the different elements of the device are designed to make operator operate with it in a secure manner and prevents utilizing in any unsafe condition.
  • The electrical safety features of the Fully-Automatic Intelligent Microtome LT9502 are designed to make the device does not be affected by the electrical issues on Voltage.
    Low and Efficient weight and dimensions of it are unique among other Fully-Automatic Microtomes.





Semi Automated Microtome LT9209

Specifications and Technical Data

The system operates in a motorized manner and except the micro handle the other motions are controlled by motor and via the control panel.

The specimen clamp could go ahead and back both rapidly and slowly in course feed of the device.

Controlling the front and back coarse feed automatically by accurate control of the sensors.

The device is controlled and managed in real time manner using two panels

The device system is equipped with Retraction (RET) facility which is be activated would lead to the consecutive sectioning.

The device Trimming (TRM) system could be set to decrease the time of accessing the surface of the tissue which is a very functional process for the crowded centres.

Home position: This position makes the operator able to lead the specimen clamp to the primary position by touching the button.

Retraction (RET) of this system could be turned on or off and could also be set by the operator in 1 to 100 micron limits.

The Trimming (TRM) value could be set by the operator from 2 to 600 micron by the following steps:

2 micron increments for 2-10 micrometer

5 micron increments for 10-20 micrometer

10 micron increments for 20-50 micrometer

50 micron increments for 50-100 micrometer

100 micron increments for 100-600 micrometer

Capability of counting the section numbers on the display panel and the capability of clearing the counted numbers using the CLEAR key

Utilizing the micro-processor controlling system in device settings

The display panel type is Graphite LCD the information related o the settings of the device could be read and observed easily

The double operating system of the device is provided on the device case and also as a side one as an External controller by which the operation of the keys and the settings and also observation of the numbers happen easily.

Specification

  • Sectioning Thickness Settings by the operator:
    • 0.5 micron increments for 0.5-5 micrometer
    • 1 micron increments for 5-20 micrometer
    • 10 micron increments for 20-60 micrometer
  • Equipped with the Universal clamp for accurate settings of the tissue angel to the blade
  • The possibility of changing the blade angel by the operator from 0 to 10 degrees
  • The system is equipped with the emergency key by which the operator can stop the system operation immediately

Rotary Microtome LT8402

Specifications:

  • Modular design
  • Mechanical system
    • No gear is used in this device for controlling the specimen feed so the device operates with high accuracy for long time.
  • The plastic tissue container Clamp could be installed easily
  • Section thickness ranges from 1 to 60 microns
  • The angle of the blade could be set from 0 to 10 degrees to the specimen or the paraffin block by the operator
  • Equipped with Micron handle lock in all rotational situations
  • Ease of operation
  • The specimen could be rapidly moved through the blade by a Macro handle
  • Use of the special Ball Bearings in moving parts of the device to prevent the rapid amortization of the device
  • Equipped with Automatic Retraction System for serial sectioning
  • Equipped with Trimming Stage in 10 and 30 microns for faster trimming allowing the operator reach the tissue surface quickly
  • The device weighs approximately 34 kilograms

Rotary Microtome LT4055

Specifications:

  • Fully Mechanic and Modular System
    • No gear is used in this device for controlling the specimen feed so the device operates with high accuracy for long time.
  • The plastic tissue container Clamp could be installed easily
  • Section thickness ranges from 0.5 to 60 microns
  • The angle of the blade could be set from 5 to 25 degrees to the specimen or the paraffin block by the operator
  • Equipped with Micron handle in all rotational situations
  • Ease of operation
  • The specimen could be rapidly moved through the blade by a Macro handle
  • Use of the special Ball Bearings in moving parts of the device to prevent the rapid amortization of the device
  • Equipped with Automatic Retraction System for serial sectioning
  • The device weighs approximately 37.5 kilograms
